The safety of the three-stage blasting boom is better than that of
the ordinary standard boom. The middle boom can increase the safe
distance between the cockpit and the working parts. Safety
operation is strongly advocated now, so the three-stage blasting
boom will be the future trend.

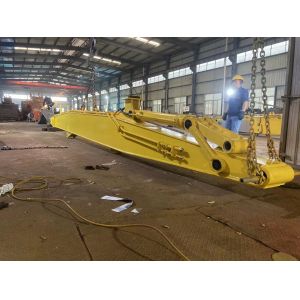

The demolition arm is used for the reconstruction of old houses and
old cities, urban demolition projects, chimney demolition, etc.
Combination proposal for excavator demolition attachments
| Weight | Model | Part Length | Total length(m) | Weight(kg) | Maximum removal height(m) |
| Total Length(mm) | 25T | 8.5 | 16 | 2800 | 16M |
| Boom(A)(mm) | 2.3 | 900 |
| Arm(b)(mm) | 5.2 | 1700 |
| Maximum Digger Radius(C)(mm) | 30T | 9.5 | 18 | 3000 | 18M |
| Maximum Digger Depth(C)(mm) | 2.3 | 1000 |
| Maximum Unloading Height(E)(mm) | 5.2 | 1950 |
| Maximum Digger Height(F)(mm) | 35T | 10.5 | 20 | 3500 | 20M |
| Bucket Volume(m³) | 2.3 | 1100
|
Materials: Sheet material is Q355B(Q690D is optional), hydraulic steel pipe
is cold-drawn seamless steel pipe, pin material is 40Cr, high
pressure hose is joint venture pipe with 4 layers of coil wire,
shea tube is single layer hose, and the bushing of big arm base is
graphite alloy copper sleeve.
Structure: 1 boom, 1 middle arm, 1 arm, 8 pins, 12 globe valves, 1 bucket
cylinder (20t class), all high-pressure hoses, 1 set of linkage
device.
Product advantage: The size of large and medium-sized arm designed by our company is
reasonable. After the dismantling arm is installed with the
crushing hammer, it can rotate normally. The large and medium-sized
arm can realize 180 degrees of opening Angle, and the overall
dismantling height will be higher. The overall production
technology is ahead of the average level of the industry, and the
product quality is better than that of the same level.
Advantages of long reach demolition for excavator
1. Applicable for all the make and model of the excavator.
2. Many different materials such as Q345B, and Q690D are optional
to suit your application.
3. Big boom can be two jointed pcs to make it fittable into a
container to save shipping costs.
4. All the seams are 45 degrees tapered before welding.
5. All parts have a warranty
6. Some parts can be consolidated using a thicker plate or
overlapping another plate for heavy-duty application.
7. The boom cylinder and arm cylinder can also be supplied if the
customer wants.
8. Extra pipelines can be added to suit some extra applications.
9. The conventional material is Q355B. The plate is thin, high in
strength, and light in weight, and reduces the load of the
excavator.
10. The bushing in the boom seat cover is made of copper (with
self-lubricating carbon powder inside to extend the life of the
long arm).
Advantages of ZHONGHE MACHINERY
Customized:
1. Suitable for all brands of excavators.
2. Color, length and material can be made according to your
requirements.
3. Additional pipes can be added to accommodate some additional
applications.
4. If the customer needs it, we can also provide boom cylinder and
rod cylinder.
Strong production capacity:
We can produce 50 sets of excavator booms per month.
The annual output of all kinds of excavator arms can reach 600
sets.
Good service:
1. Online support within 24 hours.
2. Schedule a video technical support appointment.
(Our engineers specialize in excavator booms and accessories for
more than 10 years)
3. The excavator arm should be two/three sections to make it
suitable for loading into the container to save transportation
costs.
Company profile
Kaiping Zhonghe Machinery Manufacturing Co., Ltd, is a
manufacturing and trading combo that specializes in customizing
different kinds of excavator boom arms and attachments We have more
than 14000m' steel structure standardization workshop with a large
number of high precision processing equipment as well as a strong
and cohesive team. At present, there are more than 60 experienced
technical staff, 30 welding workers with over 7 years of
experience, 15 senior designers, and a high-tech R&D team.
Our annual output of various types of excavator boom arms can reach
600 sets. We supply products with high quality and moderate prices,
which sell well in more than 40 countries and areas.
We adhere to" Merit Quality, Sincerity Management, and Customer
Satisfaction", and honestly greet customers from home and abroad to
negotiate and cooperate with us.
Applications
Our product can well fit these excavator brands: KOMATSU, HITACHI,
CATERPILLAR, SUMITOMO, HYUNDAI, KOBELCO, KATO, SANY, DAEWOO, VOLVO,
etc.
